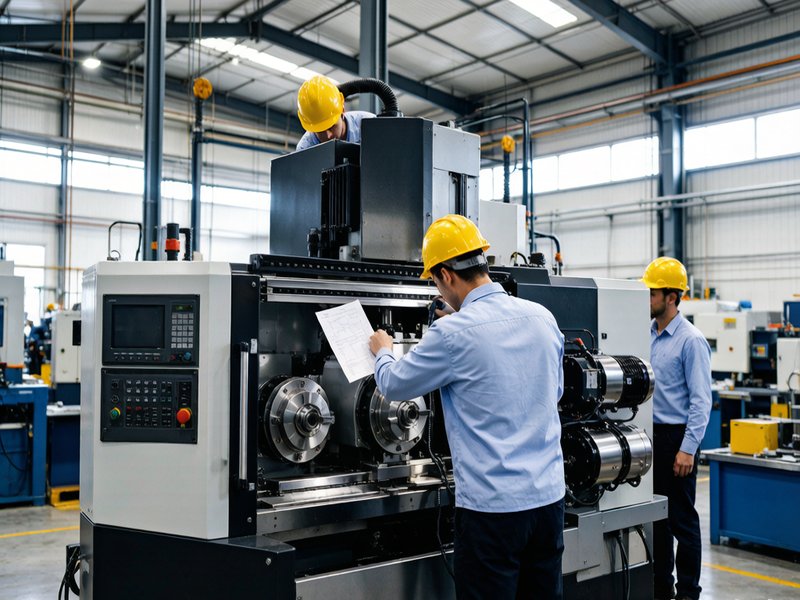

2021 - CNC Machine Tool Retrofitting for Automotive Parts Supplier

Project Overview

In 2021, a Tier-2 automotive parts supplier in Dongguan commissioned a full axis retrofit of an aging Vertical Machining Center. The goal was to restore positioning accuracy and extend machine life without replacing the entire frame.

Equipment Supplied

• Vertical Machining Center (VMC-850) — 3-axis machining platform

Yousee.Tech Components

• Linear Guide Rail | LGD & Miniature Series
• Ball Screw | SFU & DFU Series
• Servo Motor | 400W~1.5kW Series

Implementation

Our team replaced the original plain-bearing ways with preloaded linear guide rails and precision ground ball screws on X, Y, and Z axes. The open-loop stepper drives were upgraded to closed-loop AC servo motors with 17-bit encoders, matched to planetary reducers on the Z-axis.

Results

• Positioning repeatability improved from ±0.02 mm to ±0.005 mm
• Surface finish (Ra) improved by 35%
• Reduced scrap rate by 18% over the first 12 months

Project Snapshot

• Year: 2021
• Client: A Tier-2 automotive parts supplier in Dongguan, China
• Equipment: Vertical Machining Center (VMC-850)
• Yousee.Tech Products: Linear Guide Rail | LGD & Miniature Series, Ball Screw | SFU & DFU Series, Servo Motor | 400W~1.5kW Series
