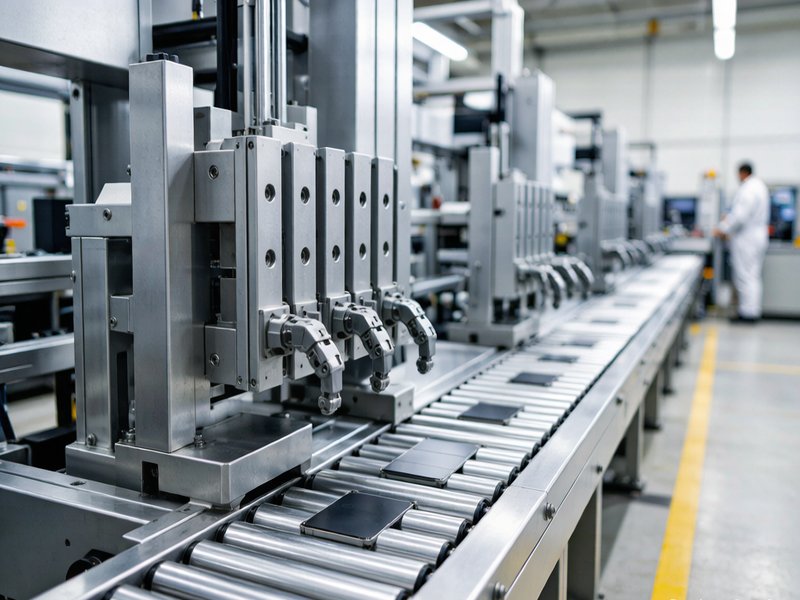

2022 - High-Speed Lithium Battery Cell Assembly Line

Project Overview

In 2022, a top-tier battery manufacturer needed to scale pouch-cell production. The stacking station required fast, repeatable pick-and-place motion with compact actuators and reliable pneumatic clamping.

Equipment Supplied

• Pouch Cell Stacking Machine — 6-axis stacking & compression station

Yousee.Tech Components

• Linear Module | TGH / TMH / TGD Series
• Electric Cylinder | EC & FEC Series
• Pneumatic Components | LX / AC / BFC Series

Implementation

We supplied belt-driven linear modules for long-travel transfer and ball-screw modules for short, high-precision stacking motions. Electric cylinders provided programmable clamping force, while compact pneumatic grippers handled electrode insertion.

Results

• Cycle time reduced to 0.8 s per cell
• Stacking accuracy ±0.03 mm over 400 mm travel
• Increased line throughput by 22%

Project Snapshot

• Year: 2022
• Client: A leading lithium-ion battery manufacturer in Ningde
• Equipment: Pouch Cell Stacking Machine
• Yousee.Tech Products: Linear Module | TGH / TMH / TGD Series, Electric Cylinder | EC & FEC Series, Pneumatic Components | LX / AC / BFC Series
