2025 - Medical Device Precision Dispensing Platform

Project Overview

In 2025, a medical device OEM needed a quiet, vibration-free dispensing platform capable of nanoliter-scale adhesive and reagent placement on flexible catheter substrates.

Equipment Supplied

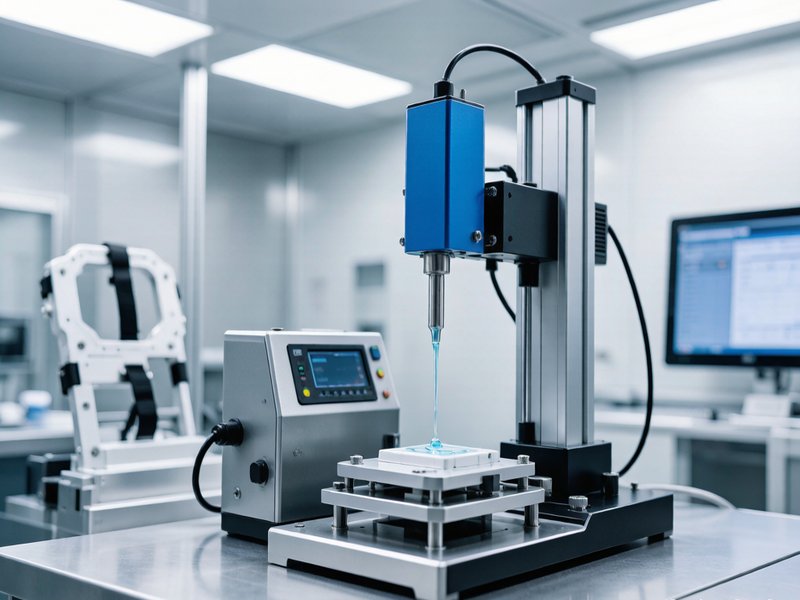

• Micro-Dispensing Workstation — XYZ + theta dispensing cell

Yousee.Tech Components

• Linear Motor | TMZ & TLC Series
• Precision Alignment Platform | XYθ & Custom
• Pneumatic Components | LX / AC / BFC Series

Implementation

Ironless linear motors eliminated cogging for smooth, low-vibration motion. The XYθ alignment platform fine-tuned substrate angle, and precision pneumatic dispensers controlled droplet volume via regulated pulse timing.

Results

• Dot placement accuracy ±2 µm
• Dispensing repeatability CV < 1%
• Passed ISO 13485 validation cycle

Project Snapshot

• Year: 2025
• Client: A medical device OEM in Shanghai
• Equipment: Micro-Dispensing Workstation
• Yousee.Tech Products: Linear Motor | TMZ & TLC Series, Precision Alignment Platform | XYθ & Custom, Pneumatic Components | LX / AC / BFC Series
