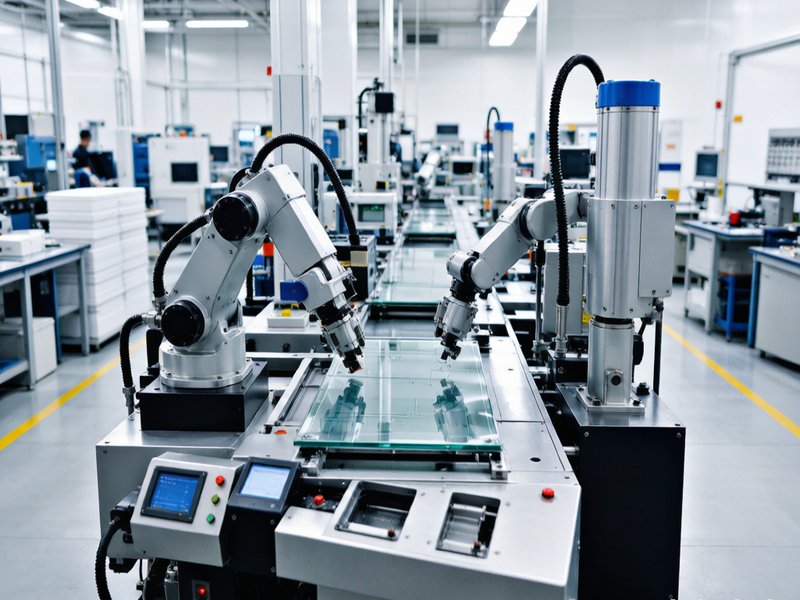

2024 - 3C Electronics Screen Assembly Automation

Project Overview

In 2024, a 3C display contractor automated a screen laminator requiring precise load/unload, film alignment, and pressure bonding without damaging fragile OLED panels.

Equipment Supplied

• Mobile Phone Screen Laminator — OCA film bonding machine

Yousee.Tech Components

• Stepper Motor | NEMA 17 / 23 Series
• Pneumatic Components | LX / AC / BFC Series
• Linear Module | TGH / TMH / TGD Series

Implementation

NEMA 17 stepper motors drove the load/unload conveyor and film alignment axes. Compact ball-screw linear modules positioned the screen under the laminator roller, while pneumatic cylinders applied controlled bonding pressure.

Results

• Cycle time 4.5 s per unit
• Film alignment accuracy ±0.05 mm
• Bubble defect rate reduced below 0.3%

Project Snapshot

• Year: 2024
• Client: A smartphone display assembly contractor in Shenzhen
• Equipment: Mobile Phone Screen Laminator
• Yousee.Tech Products: Stepper Motor | NEMA 17 / 23 Series, Pneumatic Components | LX / AC / BFC Series, Linear Module | TGH / TMH / TGD Series
